Understanding Pose Tracking in Virtual Reality
In virtual reality, pose tracking is the core technology that translates a user’s real-world movements of the head, hands, and body into the virtual environment. The precision of tracking directly determines the level of immersion and realism a user experiences.
Modern VR systems primarily employ two tracking methods: Inside-out tracking and Outside-in tracking. Each method has its own strengths, limitations, and ideal use cases.
This guide will walk you through:
-
The key differences between inside-out and outside-in tracking.
-
The technical principles behind each method.
- Practical considerations when choosing the right solution.
- Examples of commercial VR systems for reference.
Inside-out vs. Outside-in Tracking: What’s the Difference?
The fundamental difference lies in where the tracking sensors are located and what serves as the reference point for positional calculation.
-
Inside-out tracking: Cameras and sensors are built directly into the headset, which “looks outward” to interpret the environment.
-
Outside-in tracking: External base stations or sensors are placed in the room and “look inward” to track the headset and controllers.
Here’s a side-by-side overview：
|
Feature
|
Outside-in Tracking
|
Inside-out Tracking
|
|
Sensor Location
|
External sensors (base stations) in the room
|
Embedded cameras/sensors on the headset
|
|
Reference Point
|
Fixed external base stations
|
The surrounding environment (walls, furniture, objects)
|
|
Occlusion Handling
|
Highly resistant to tracking loss
|
Can lose tracking when controllers leave headset view
|
|
Setup & Portability
|
Requires installation and calibration
|
Simple setup, portable, works in most environments
|
|
Tracking Volume
|
Limited to base station coverage
|
Flexible, not constrained by fixed space
|
|
Cost & Complexity
|
Higher upfront investment, more components
|
Lower cost, self-contained solution
|

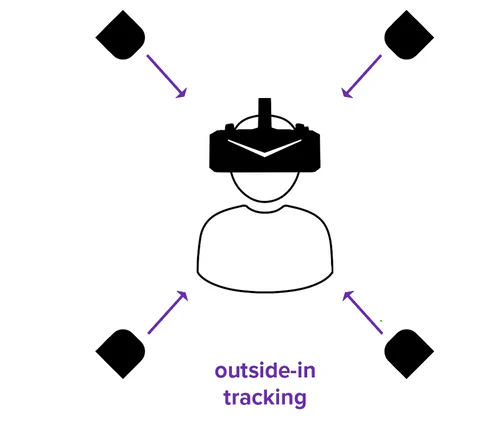

Outside-in Tracking
Outside-in systems rely on external base stations (also known as lighthouses) that define a monitored play area. The headset and controllers are fitted with sensors or reflective markers that the stations continuously track.
-
How It Works: At least two base stations emit invisible sweeping signals (infrared or laser). The sensors on the headset and controllers detect these sweeps and send timing data to the host PC, which triangulates exact position and orientation.
-
Advantages: Exceptional accuracy and reliability, even in fast-paced or highly precise applications. Because coverage overlaps, tracking remains stable even when one device is temporarily obstructed.
-
Why It Matters: This method is widely considered the gold standard for precision—making it ideal for simulation, eSports, and professional applications.
Inside-out Tracking
Inside-out systems shift the intelligence into the headset itself. Integrated cameras scan the room, detecting static landmarks such as walls, furniture, or patterns on the floor.
-
How It Works: Advanced algorithms like SLAM (Simultaneous Localization and Mapping) build a real-time map of the environment. As the user moves, the system compares live frames with this map to calculate motion. Internal sensors such as gyroscopes and accelerometers provide additional data for rapid movements.
-
Controller Tracking: Controllers are tracked via infrared LEDs or other patterns visible to the headset’s cameras.
- Advantages: No external hardware is required. Setup is nearly instantaneous, making the system highly portable and user-friendly.
-
Limitations: Tracking may falter if controllers move outside the cameras’ field of view or if the environment lacks distinct features. Poor lighting can also reduce accuracy.
How VR Tracking Works
Outside-in Process
-
Sensor Setup – Base stations are mounted in opposite corners of the room to cover the play area.
- Reference Grid – Stations emit sweeping infrared or laser signals, forming a 3D coordinate system.
- Detection & Triangulation – Headset and controller sensors register these sweeps and relay data to the PC, which calculates precise positioning.
-
Continuous Tracking – This process runs hundreds of times per second, delivering sub-millimeter precision for highly demanding use cases.
Inside-out Process
- Environmental Mapping – Headset cameras scan the surroundings and identify feature points.
-
Position Estimation – Movement is calculated by comparing how features shift across frames, aided by IMUs for responsiveness.
- Controller Tracking – Controllers are recognized and followed by the headset’s cameras.
- Edge Cases – Tracking can be interrupted if the environment lacks detail, if lighting is insufficient, or if controllers move outside the cameras’ view.
Choosing the Right Tracking Method
Your choice depends on space, accuracy needs, setup preference, and budget.
1. Environment & Space
- Inside-out: Best for flexible or multi-use spaces such as living rooms or offices. Works anywhere without external equipment.
- Outside-in: Ideal for a dedicated VR room or setup, where base stations can remain fixed.
2. Accuracy & Stability
- Inside-out: Sufficient for most games and applications, though occasional occlusion or jitter may occur.
- Outside-in: Provides unmatched precision and reliability, perfect for competitive gaming and professional use.
3. Setup & Maintenance
- Inside-out: Quick plug-and-play experience, minimal effort required.
- Outside-in: Requires mounting, wiring, and calibration, but offers a stable “set it and forget it” solution.
4. Budget Considerations
- Inside-out: Dominates in standalone headsets, offering an affordable entry point.
- Outside-in: Premium technology associated with high-end PC VR systems, requiring a larger investment.
Examples of VR Systems
| Brand / Model |
Tracking Method
|
Notes
|
|
Dream Air / Pimax Crystal Super / Crystal Light
|
Inside-out & Outside-in
|
Dream Air comes in two versions: Lighthouse version and Inside-out version. The Crystal series natively supports Inside-out tracking and can support base station Outside-in tracking by replacing the Lighthouse panels.
|
|
Meta Quest 3 / Quest 2 / Quest Pro
|
Inside-out
|
Standalone-first design, optimized for portability and ease of use.
|
|
Apple Vision Pro
|
Inside-out
|
Premium standalone headset with advanced passthrough and spatial computing features.
|
|
HTC Vive XR Elite
|
Inside-out
|
Compact form factor, designed for standalone and mixed reality.
|
|
Pico 4 Ultra
|
Inside-out
|
Lightweight standalone headset, widely used for consumer VR.
|
|
HP Reverb G2
|
Inside-out
|
PCVR headset focused on high-resolution visuals, WMR tracking system.
|
|
Valve Index
|
Outside-in
|
Gold-standard precision tracking using SteamVR base stations.
|
|
HTC Vive Pro / Vive Pro 2
|
Outside-in
|
Professional-grade PCVR, highly accurate SteamVR tracking.
|
|
Bigscreen Beyond
|
Outside-in
|
Ultra-lightweight PCVR headset, fully dependent on SteamVR base stations.
|
|
Shiftall MeganeX
|
Inside-out
|
Compact, OLED microdisplay PCVR headset with portability focus.
|
|
Play for Dream (consumer lineup)
|
Inside-out |
Standalone devices targeting all-in-one convenience and mobility.
|
