As VR headsets reach more and more impressive specs, such as resolution, field of view and refresh rates, one overlooked aspect is stereo overlap — also known as binocular overlap. Despite overlooked, stereo overlap plays a crucial role that directly influences depth perception, visual comfort, and overall immersion.
In this article, we’ll break down what stereo overlap is, how it works in VR headsets, and why it matters more than you might think.
What Is Stereo Overlap?
Stereo overlap refers to the portion of the visual field that is seen by both eyes at the same time through a VR headset. In the real world, our two eyes view slightly different images due to their horizontal separation (interpupillary distance, or IPD). Our brain combines these two images to create depth perception—this is called stereoscopic vision.
In VR, the same principle applies. Each eye sees an image rendered from a slightly different perspective, and the headset design determines how much these images overlap.
How Stereo Overlap Works in VR Headsets

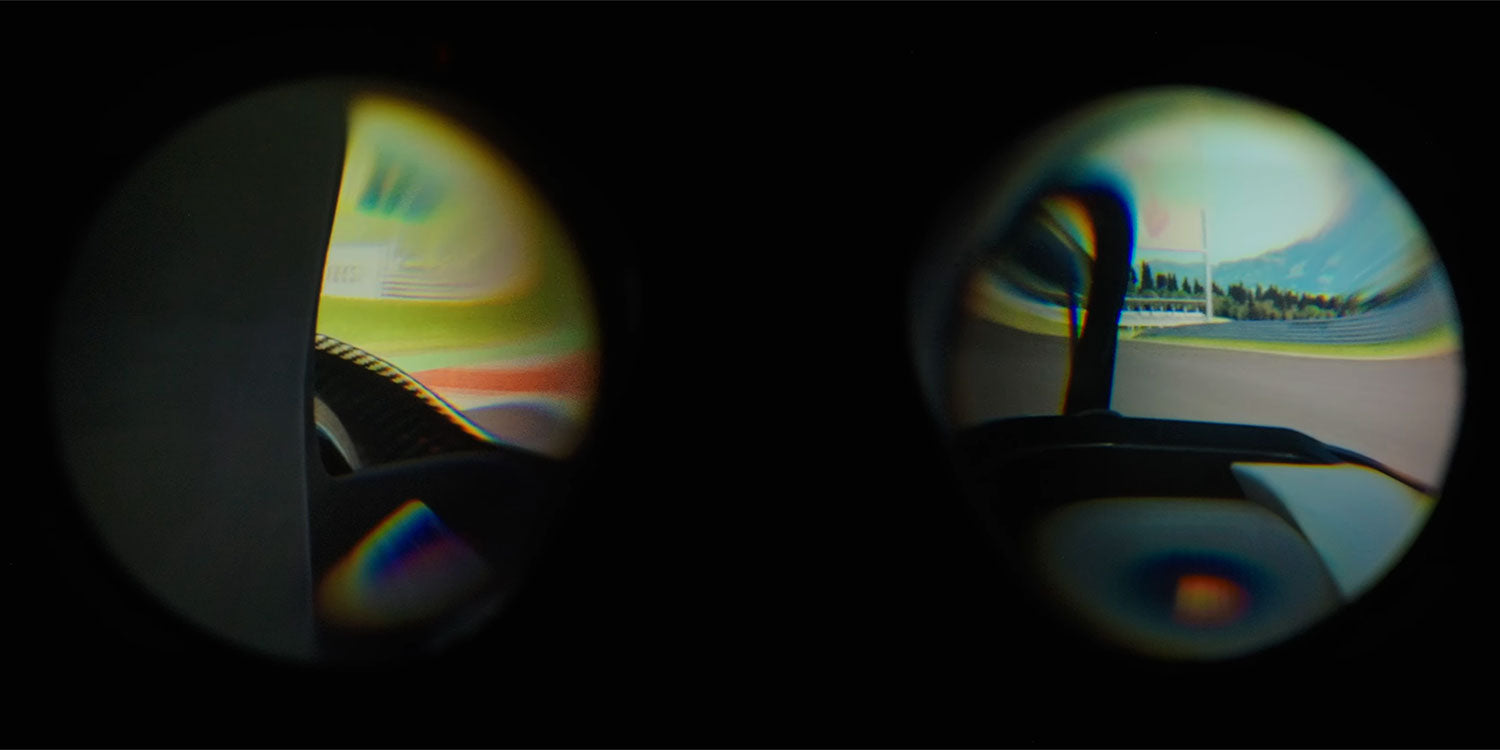

Each lens and display in a VR headset shows a unique view to each eye. The headset's optical design and lens placement determine the field of view (FOV) for each eye and how much of that FOV is shared between the two eyes—this is the stereo overlap.
Typically, the stereo overlap is greatest in the center (where our eyes naturally focus) and tapers off toward the edges. The amount of overlap can vary significantly between different headsets, depending on the design priorities.
Here’s how stereo overlap is influenced:
-
Lens size and position
-
Display panel size and resolution
-
Optical design (e.g., Fresnel vs. aspheric lenses)
-
Headset’s IPD adjustment range
-
Total horizontal FOV (monocular and binocular)
The Crystal Super uses large QLED panels with glass aspheric lenses, to achieve a near 105° of stereo overlap on a super wide field of view, with 29 million pixels (3840 x 3840 pixels per eye). The IPD range is 58 - 72 MM.
Why Stereo Overlap Matters
1. Depth Perception
The more overlap between the two eye views, the more data the brain has to accurately judge depth. Low stereo overlap can result in less convincing 3D scenes and reduced spatial presence, especially in the peripheral vision.
2. Visual Comfort
Poor stereo overlap can lead to eye strain, fatigue, and discomfort, particularly during long sessions. It can also increase the likelihood of double vision or visual confusion, especially if IPD is misaligned.
3. Immersion and Realism
A wide field of view with good stereo overlap contributes to a more immersive experience. Users are more likely to feel “present” in the virtual environment when their peripheral vision supports binocular depth cues, not just central vision.
4. Compatibility with Human Vision
Our real-world binocular overlap is about 120°, with the rest being monocular. Headsets that closely match or approximate this offer a more natural visual experience. Designs with high monocular FOV but low stereo overlap may technically boast a large FOV, but not one that “feels” realistic or usable.
Trade-Offs in Design
Increasing stereo overlap usually means reducing the maximum FOV, or using larger optics. Many headsets have either a good FOV, or a good stereo overlap, although the Pimax Crystal Super arguably has both.
It’s a delicate balance:
-
High stereo overlap = Better depth and comfort, but smaller FOV
-
Low stereo overlap = Wider FOV, but reduced depth and edge clarity
The Bottom Line
Stereo overlap may not be as flashy as resolution or refresh rate, but it’s a fundamental factor in how “real” a VR experience feels. For developers, headset manufacturers, and discerning users, understanding stereo overlap is key to optimizing both hardware and content for maximum comfort and immersion.
As VR technology matures, expect headset designs to continue refining this balance, striving to match the intricacies of human vision more faithfully than ever.
